AI Powered Truck Tracking for Quarries and Mining Sites

Executive Summary: Enhancing Quarry Logistics with AI Vision

The constant flow of vehicles in and out of quarry sites presents significant logistical challenges. Traditional manual tracking methods are often prone to errors, delays, and inefficiencies, impacting overall productivity and accountability. This explainer outlines a conceptual AI-quarry truck tracking solution designed to leverage existing surveillance infrastructure (like Bosch or other IP cameras) for automated Computer Vision (CV) (Technology enabling computers to ‘see’ and interpret images/video) analysis. Imagine a system that automatically detects and counts trucks and trailers, determines their load status (filled or empty), and captures license plates in real-time. This AI analytics layer offers quarries a pathway to significantly improve operational oversight, accuracy, and efficiency through intelligent automation, transforming raw video feeds into actionable logistical data.

1. The Challenge: Manual Quarry Vehicle Monitoring

Context: The Busy Quarry Environment

Quarries are dynamic industrial environments characterized by the continuous movement of heavy vehicles, primarily trucks and trailers transporting materials. Efficiently managing this traffic flow – tracking entries, exits, load statuses, and vehicle identification – is crucial for smooth operations, accurate billing, and site security. Relying solely on manual checks and logging creates inherent bottlenecks and vulnerabilities.

Key Pain Points Addressed by AI

• Inaccurate Vehicle Counts: Manual tallies are susceptible to human error, leading to discrepancies in material tracking and potential revenue loss.
• Load Status Disputes: Subjective visual checks of whether a truck is full or empty can lead to disagreements between drivers and site operators.
• Time-Consuming Manual Logging: Gate personnel spending time manually recording license plates and entry/exit times slows down throughput.
• Lack of Real-Time Visibility: Manual logs provide delayed data, hindering timely operational decisions and response.
• Security Gaps: Difficulty in reliably tracking every vehicle entering or leaving the site, especially during peak hours.
• Inefficient Resource Allocation: Without accurate, real-time data on vehicle flow and load status, optimizing dispatch and site resources is challenging.

Limitations of Traditional Approaches

Traditional methods often involve gatekeepers manually logging information or using simple sensor-based counters that lack detail (like load status or vehicle identity). These approaches struggle with high traffic volumes, varying vehicle types (trucks vs. trailers), adverse weather conditions, and the need for consistent accuracy 24/7. They typically fail to provide integrated data encompassing counts, load status, and vehicle identity automatically.

2. The AI Quarry Truck Tracking Solution Concept:

Vision & Objectives for an AI-Powered System

The vision is to create an intelligent layer over existing camera systems that provides continuous, automated monitoring and analysis of vehicle movements within a quarry.

• Automated Detection & Counting: Reliably detect and count all trucks and associated trailers entering and exiting designated zones.
• Accurate Load Status Determination: Automatically classify each detected vehicle (truck/trailer) as visually ‘filled’ or ’empty’ based on camera feeds.
• License Plate Recognition: Capture and accurately transcribe license plate numbers for logging and identification using Optical Character Recognition (OCR) (Technology that converts images of typed, handwritten, or printed text into machine-encoded text).
• Real-Time Event Logging: Generate timestamped logs for each significant event (entry, exit, load status detection, LPR capture).
• Accessible Reporting: Provide data through a lightweight dashboard interface for monitoring and basic analysis of traffic patterns and logged events.

3. How It Works: The Technology Explained

Data Acquisition: Leveraging Existing Camera Feeds

The system is designed to integrate directly with existing IP-based surveillance cameras commonly found at industrial sites. It accesses real-time video streams using standard protocols like Real-Time Streaming Protocol (RTSP) (A network control protocol designed for use in entertainment and communications systems to control streaming media servers) or Open Network Video Interface Forum (ONVIF) (An open industry forum that provides and promotes standardized interfaces for effective interoperability of IP-based physical security products). This allows the AI analytics to work with compatible camera infrastructure, including brands like Bosch.

The AI Processing Pipeline: From Video Stream to Actionable Data

This describes the typical flow of information through the conceptual AI system:

1. Stream Ingestion & Frame Extraction: First, the system connects to the designated camera streams (e.g., at entry/exit points) and begins processing the live video feed, extracting individual frames for analysis.
2. Vehicle Detection: Next, an Object Detection Model (A type of computer vision model trained to identify the presence and location of specific objects within an image or video frame) analyzes each frame to identify and locate trucks and trailers within the camera’s view.
3. Vehicle/Trailer Association (Optional): The system can be designed to associate detected trailers with the specific truck hauling them, ensuring accurate unit counting.
4. Load Status Classification: Once a truck or trailer is detected in the designated zone (e.g., the truck bed area), an Image Classification Model (A type of computer vision model trained to categorize an image based on its visual content) analyzes the relevant region of the image to determine if it appears ‘filled’ or ’empty’. This requires training the model on site-specific imagery for optimal accuracy.

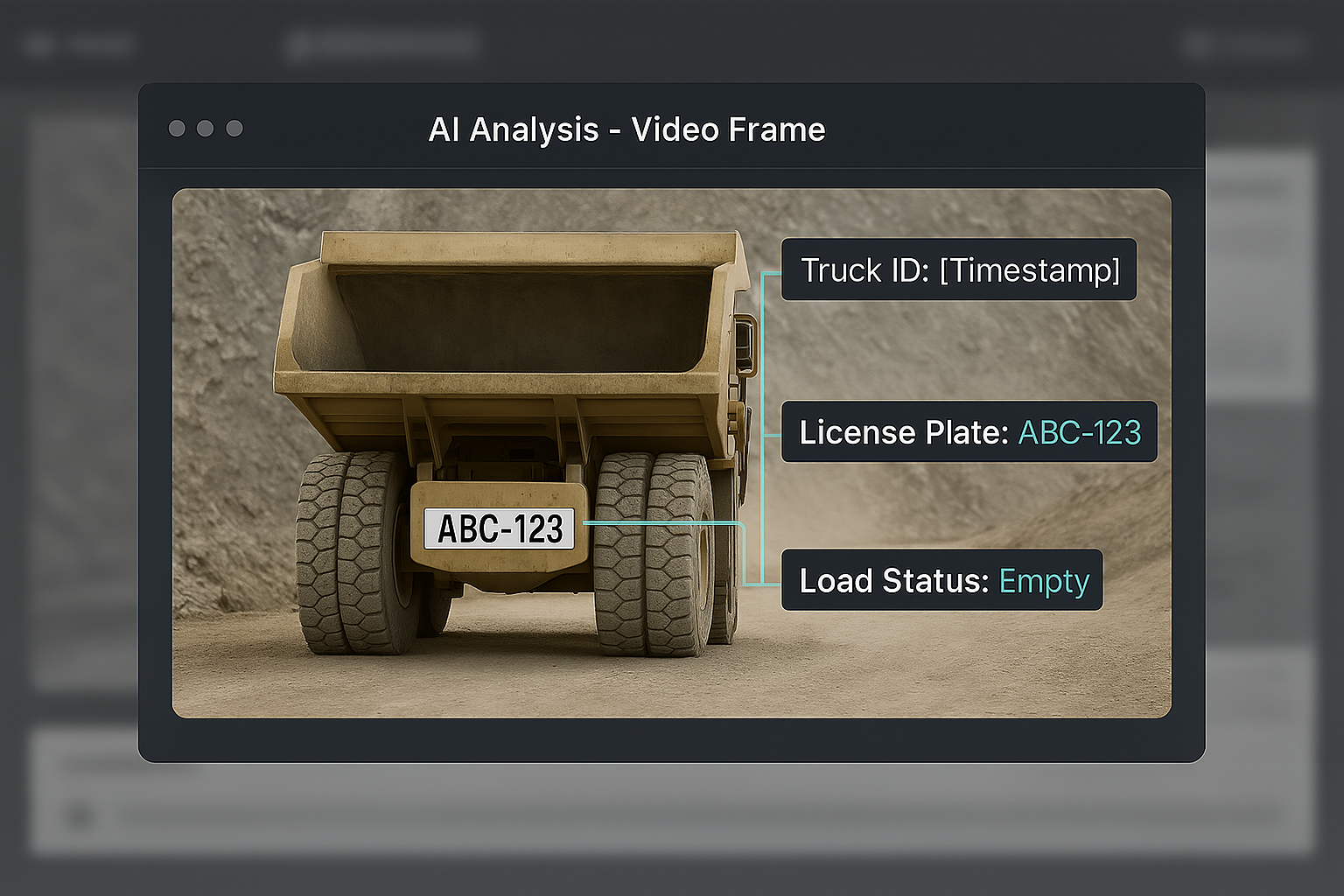

5. License Plate Detection & OCR: Simultaneously or sequentially, the system searches for license plates on detected vehicles. If a plate is found, another specialized model performs OCR to extract the alphanumeric characters.
6. Data Aggregation & Logging: The system then compiles the extracted information – timestamp, vehicle type, count, entry/exit event, detected load status, and license plate number – into a structured log entry.
7. Dashboard Update: Finally, this logged event data is pushed to the lightweight dashboard for visualization and reporting.

Output & Interaction: Accessing Insights

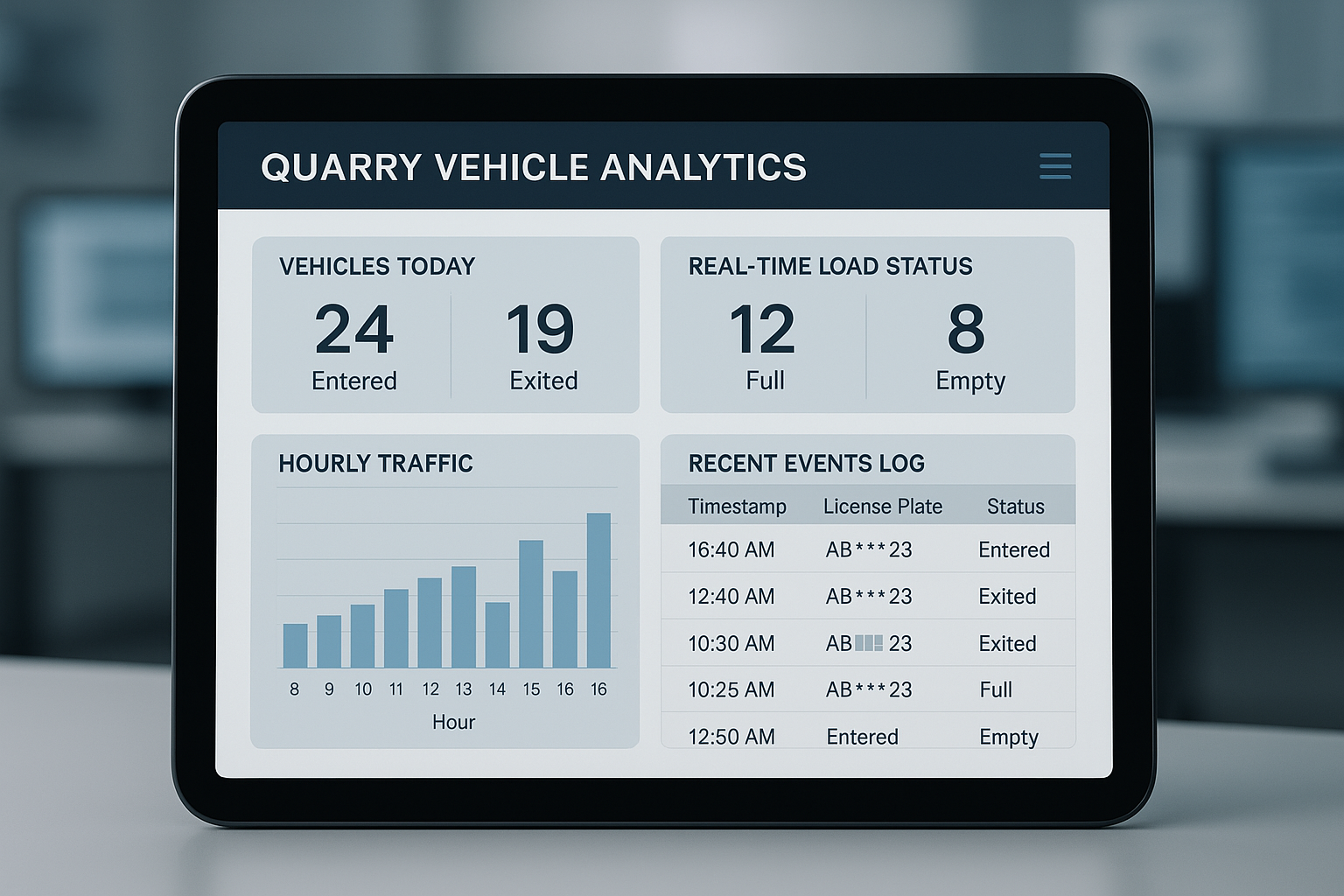

The primary output is a continuously updated log of vehicle movements and associated data. Users interact with this information via a simple, web-based dashboard. This interface allows authorized personnel to view real-time event streams, review historical logs, search for specific vehicles (by plate number or time), and generate basic reports on traffic volume and patterns.

4. Key Enabling Technologies: The Core AI Components

• Computer Vision (CV): The foundational field enabling the system to interpret visual data from cameras.
• Object Detection Models: Algorithms (e.g., YOLO, SSD variants) specifically trained to locate and identify vehicles (trucks, trailers) and license plates within video frames.
• Image Classification Models: Algorithms (e.g., ResNet, MobileNet variants) trained to categorize image regions based on visual features, used here to determine load status (empty vs. full).
• Optical Character Recognition (OCR): Technology used to convert the image of the license plate into readable text data.
• RTSP/ONVIF: Standard protocols enabling communication and video streaming from IP cameras to the AI processing unit.
• Data Processing & Storage: Databases and software logic required to manage, store, and retrieve the large volume of event data generated.

5. Potential Impact & Benefits for Quarry Operations

Implementing such an AI-driven system can yield significant advantages:

• Enhanced Operational Efficiency: Faster vehicle processing at gates, reduced manual intervention, and data for optimizing traffic flow and dispatch.
• Improved Data Accuracy: Eliminates human errors in counting and logging, providing a reliable source of truth for material movements.
• Increased Site Security: Creates an automated, timestamped record of every vehicle entering and exiting, complete with license plate data.
• Reduced Disputes: Objective, automated detection of load status provides evidence to minimize disagreements.
• Better Resource Management: Accurate data on vehicle numbers and types allows for better planning and allocation of site resources.
• Data-Driven Decision Making: Insights from traffic patterns and historical data can inform operational improvements and strategic planning.
• Potential for Integration: Data logs can potentially be integrated with existing weighbridge, ERP, or billing systems for streamlined workflows.

6. Important Considerations for Implementation

Deploying an effective AI vehicle analytics system requires careful planning:

• Camera Quality and Placement: Optimal camera angles, resolution, and lighting conditions are crucial for accurate detection and classification. Infrared (IR) capabilities might be needed for night operations.
• Environmental Challenges: The system’s models need to be robust enough to handle variations in weather (rain, fog, sun glare) and site conditions (dust, mud).
• Data Privacy and Security: Procedures must be in place for handling potentially sensitive data like license plate numbers, complying with relevant regulations.
• System Integration: Planning how the AI system’s outputs will integrate with existing operational software or processes (if required).
• Scalability: Designing the system architecture to handle the required number of camera streams and data volume, potentially across multiple sites.
• AI Model Training & Maintenance: Models may require initial site-specific tuning and periodic retraining to maintain accuracy as conditions change or new vehicle types appear.
